Description

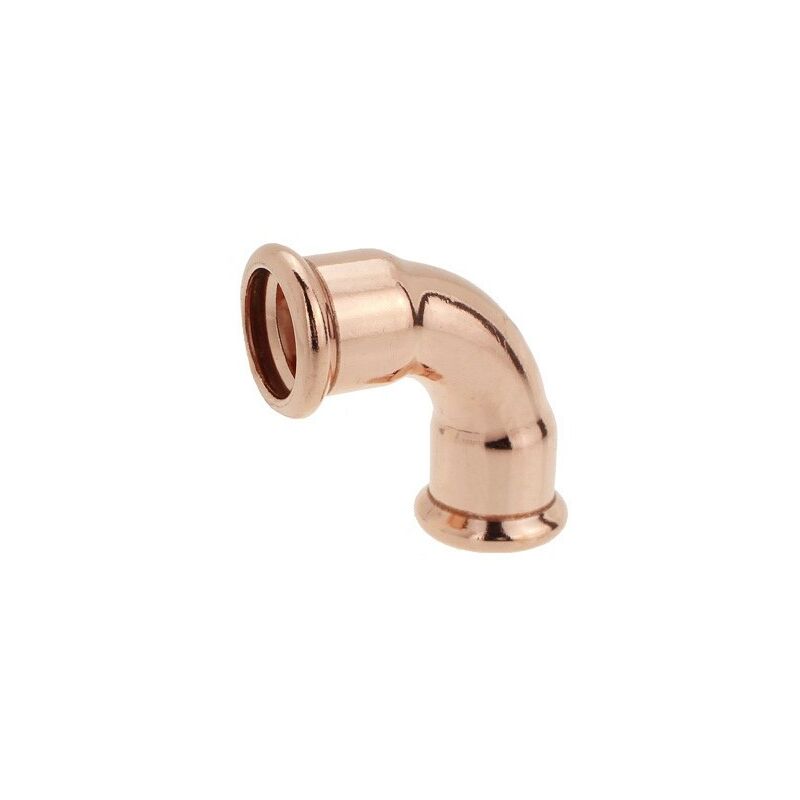

General description This X5 22mm Copper Press Fit 90 Degree Elbow is a right angle bend designed to connect lengths of pipe at a corner or change the course of the pipe. It features a full 90-degree angle with 22mm ends, making it ideal for various plumbing applications. Technical specifications Diameter: 22mm on both ends Material: Copper Type: Press fit Application: Suitable for HVAC, hot and cold drinking water Standards: Manufactured in accordance with EN 1057 O-ring: Specially designed with leak detection indicators (up to 54 mm) Installation Requires a crimp tool for fitting Flame-free installation, no hot works required Can only be pressed with V-profile jaws Usage Suitable for heating, ventilation, and drinking water applications Compatible with hard, half-hard, and soft copper tubes Provides a secure, permanent leak-free joint Other information WRAS approved Highly resistant to corrosion and oxidization with anti-microbial properties Not demountable Suitable for water systems
